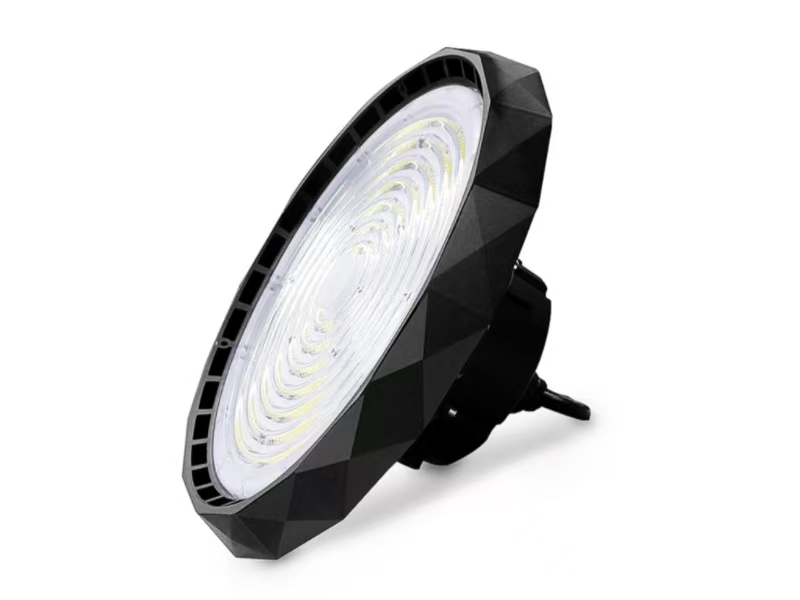

UFO03 Efficient and Intelligent LED High Bay Light for Large Spaces

Product Features
1. Energy Efficiency: 190 lm/W (when Ra70), 175 lm/W (when Ra80). It can effectively reduce energy consumption compared with traditional lamps and save costs.

2. Advanced Intelligent Control: Supports 0~10V/1~10V dimming, DALI and Zigbee dimming methods, and is equipped with optional Motion Sensor, Daylight Sensor, PIR Sensor, etc.

3. Universal Compatibility: The power ranges from 50W to 300W, the color temperature options include 3000K, 3500K, 4000K, 4500K, 5000K and 5700K, and the beam angles available are 60°, 90° and 120°.

4. Easy Installation: Supports two installation methods: ring mounting and bracket mounting. The installation steps are simple and the positioning is flexible.

5. Reliable Quality and Durability: Made of materials such as aluminum alloy, it can adapt to different environments for use, with a 5-year warranty.

Basic Parameter Table

Parameter Category	Details
Power Range	50W, 70W, 90W, 110W, 150W, 200W, 240W, 300W
Voltage Specification	100-277V (indicated by "A00" in the model)
Luminous Efficacy	- 190 lm/W at Ra70 - 175 lm/W at Ra80
Luminous Flux	- 50W: 9500 lm (Ra70), 8750 lm (Ra80) - 70W: 13300 lm (Ra70), 12250 lm (Ra80) - 90W: 17100 lm (Ra70), 15750 lm (Ra80) - 110W: 20900 lm (Ra70), 19250 lm (Ra80) - 150W: 28500 lm (Ra70), 26250 lm (Ra80) - 200W: 38000 lm (Ra70), 35000 lm (Ra80) - 240W: 45600 lm (Ra70), 42000 lm (Ra80) - 300W: 57000 lm (Ra70), 52500 lm (Ra80)
Color Temperature (CCT)	3000K (N), 3500K (M), 4000K (L), 4500K (K), 5000K (C), 5700K (H)
Beam Angle	60° (R060 Lens), 90° (R090 Lens), 120° (R120 Lens)
Dimming Methods	0~10V/1~10V Dimming, DALI, Zigbee
Sensor Options	Motion Sensor (M), Daylight Sensor (D), PIR Sensor (PIR)
Mounting Methods	Ring Mounted, Bracket Mounted
Driver Manufacturers	MW, Moso, Sosen, Philips, Happsky
Certifications	UL/ RoHs/ LC
Warranty Period	5 Years
