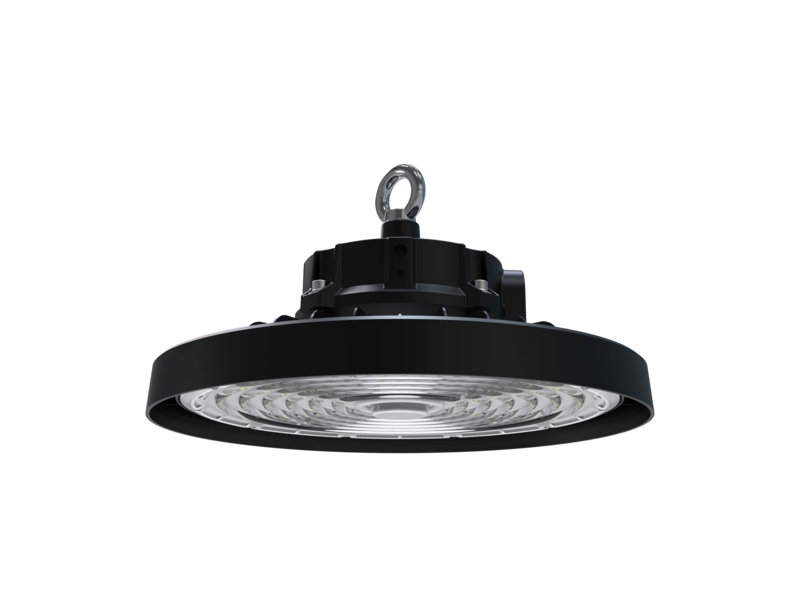

UFO11 80W-200W LED High Bay Light with completed certification

  • Product Features
  • 1.Ultra-High Efficiency & Output: The UFO11 series pushes efficacy to 200 lm/W at Ra70 (or 190 lm/W at Ra80) while driving 16,000–40,000 lumens across 80 W–200 W models, delivering ±5 % uniformity and cutting energy use by more than 60 % versus conventional high bays.
    2.Intelligent Control Options: Smart-selectable modes put full control in one fixture: occupancy-based motion sensing, on-board power switching (80 W/100 W/120 W/150 W/200 W), CCT tuning from 3000 K to 5700 K, and smooth 0–10 V dimming for tailored lighting on demand.
    3.Industrial-Grade Resilience: An IP65-rated aluminum housing with IK10 PC lens blocks dust, moisture and impacts, while reliable operation from –30 °C to +40 °C makes the UFO11 a rugged choice for factories, warehouses and cold-storage facilities.
    4.Precision Optical Design: Three interchangeable beam angles—60°, 90°, 120°—combine with premium drivers (ZH Power, Lifud, Sosen) to ensure stable, precisely directed light in every application.
  • Certification: CE, RoHS

    Basic Parameter Table

    Parameter Category Details
    Product Model UFO11 80W-200W (SA-UFOA00-80W, SA-UFOA00-100W, SA-UFOA00-120W, SA-UFOA00-150W, SA-UFOA00-200W)
    Power Range 80W, 100W, 120W, 150W, 200W
    Input Voltage 200-240VAC
    Power Factor ＞0.95
    Color Rendering Index - Ra70
    - Ra80
    Luminous Efficacy - 200lm/W (at Ra70)
    - 190lm/W (at Ra80)
    Luminous Flux - 80W: 16000lm (Ra70), 15200lm (Ra80)
    - 100W: 20000lm (Ra70), 19000lm (Ra80)
    - 120W: 24000lm (Ra70), 22800lm (Ra80)
    - 150W: 30000lm (Ra70), 28500lm (Ra80)
    - 200W: 40000lm (Ra70), 38000lm (Ra80)
    Color Temperature (CCT) 3000K (N), 3500K (M), 4000K, 4500K (K), 5000K, 5700K (H)
    Dimming Method Non-Dimming, 0~10V Dimming
    Beam Angle 60° (R060), 90° (R090), 120° (R120)
    Material Body: Aluminum; Lens: PC
    Power Supply Brand ZH Power, Lifud, Sosen
    Installation Method Ring Mounted, Bracket Mounted
    Certifications CE, RoHS
    Warranty Period 5 Years
    Dimensions - 80W/100W: Φ210xH134mm
    - 120W/150W: Φ258xH139mm
    - 200W: Φ300xH144mm
    Packaging Dimensions - 80W/100W: L250xW250xH135mm
    - 120W/150W: L300xW300xH140mm
    - 200W: L340xW340xH145mm
    Weight - 80W/100W: 1.7KG
    - 120W/150W: 2.3KG
    - 200W: 3.0KG
    LED Type SMD2835
    Operating Temperature -30°C~40°C
    Humidity Range 10%~90%
    Protection Rating IP65
    Impact Resistance Rating IK10
    Surge Protection 4kV line-line, 6kV line-earth
    Cable Length 300mm
    Installation Load Capacity ＞30KG
