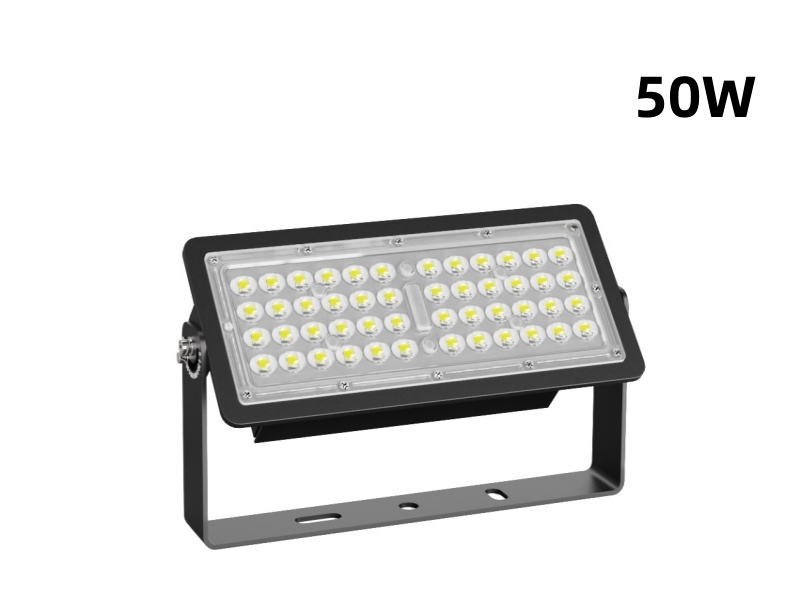

LED TL02 Series revolutionizes tunnel safety with industry-leading 200 lm/W efficacy and precision optics. Engineered for critical infrastructure, it eliminates glare and dark zones through advanced SMD5050 LEDs and PC lens diffusion. Certified to withstand harsh environments (-30°C to 40°C, 6KV surge protection), it delivers 5-year worry-free operation.
Basic Parameter Table
| Parameter | Specification |
| Power Range | 30W・40W・50W・80W・90W・100W・120W・150W・180W・200W |
| Lumen Output (±5%) | 6,000lm (30W) → 40,000lm (200W) |
| See detailed wattage table below | |
| Efficacy | 200 lm/W |
| Input Voltage | 100-240V AC |
| Power Factor (PF) | >0.95 |
| CRI | Ra70 |
| CCT Options | 3000K・3500K・4000K・4500K・5000K・5700K |
| Beam Angles | 30°・60°・90°・120°・100×120° (asymmetric) |
| Dimming | Non-Dimming / 0-10V Dimming |
| Housing Material | Aluminum body + PC lens |
| IP Rating | IP65 (dustproof/waterproof) |
| Surge Protection | 6kV line-line / 6kV line-earth |
| Operating Temperature | -30°C to +40°C |
| Humidity | 10% - 90% RH |
| Installation | Bracket Mounted (adjustable angle) |
| LED Type | SMD5050 |
| Driver | Sosen / Becky |
| Certifications | CE・RoHS |
| Warranty | 5 years |
