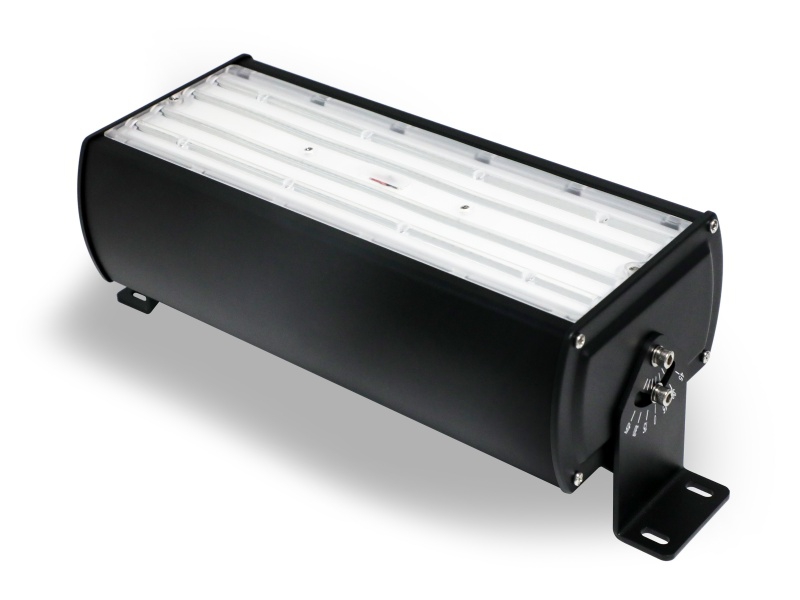

The LHB05 Series redefines industrial lighting efficiency with unmatched 200 lm/W performance, delivering 60% energy savings versus traditional HID high bays (e.g., 150W replaces 400W metal halide). Engineered for 24/7 operation in harsh environments (-40°C to 50°C), its extruded aluminum body and IK10 impact resistance withstand warehouse collisions, while IP65 sealing protects against dust and high-pressure washdowns.
Basic Parameter Table
| Parameter | Specification |
| Wattage Range | 40W・50W・60W・80W・100W・120W・150W・180W・200W・240W・250W・300W |
| Lumen Output (±5%) | 8,000lm (40W) → 60,000lm (300W) |
| See full table below | |
| Efficacy | 200 lm/W |
| Input Voltage | 100-277V AC (auto-sensing) |
| Power Factor (PF) | >0.95 |
| CRI | Ra70 |
| CCT Options | 3000K・3500K・4000K・4500K・5000K・5700K |
| Dimensions (L×W×H) | 40-60W: 372.4×142.8×123.4mm |
| 80-120W: 674.4×142.8×123.4mm | |
| 150-180W: 976.4×142.8×123.4mm | |
| 200-240W: 1278.4×142.8×123.4mm | |
| 250-300W: 1580.4×142.8×123.4mm | |
| Weight | 2.2kg (40-60W) → 7.2kg (250-300W) |
| See packaging table below | |
| Housing Material | Aluminum body + PC lens |
| IP Rating | IP65 (dustproof/waterproof) |
| IK Rating | IK10 (20-joule impact resistance) |
| Operating Temp. | -40°C to +50°C |
| Humidity | 10% - 90% |
| Dimming Options | Non-Dimming / 0-10V Dimming |
| Smart Sensors | Motion Detection / Daylight Harvesting / PIR Sensor |
| Beam Angles | 60°・90°・120°・Asymmetric 15° (for aisle lighting) |
| Installation | Bracket Mounted / Suspended Mounted |
| Driver Options | Moso / Sosen / Philips / Mean Well |
| Surge Protection | 4kV line-line / 6kV line-earth |
